Large mesh
Other mesh types on request
Strand width and thickness and variable
|
| |
Typ |
Abmessung in mm
|
| |
|
L
|
|
W
|
 |
G1 |
62,0
|
x
|
22,0
|
|
G2 |
62,0
|
x
|
25,0
|
|
G3 |
62,0
|
x
|
30,0
|
|
G4 |
75,0
|
x
|
30,0
|
|
G5 |
75,0
|
x
|
31,0
|
|
G6 |
88,0
|
x
|
38,0
|
|
| |
Typ |
Abmessung in mm
|
| |
|
L
|
|
W
|
|
G7 |
88,0
|
x
|
38,0
|
|
G8 |
88,0
|
x
|
44,0
|
|
G9 |
103,0
|
x
|
27,0
|
|
G10 |
115,0
|
x
|
50,0
|
|
G11 |
115,0
|
x
|
55,0
|
|
|
|
|
|
| Large mesh |
G1
|
| Mesh length L |
62,0 mm
|
| Mesh width W |
22,0 mm
|
| Strand width B |
3,0 mm
|
| Strand thickness A |
2,0 mm
|
| FQ approx. |
72,7 %
|
| Weight/mē Steel approx. |
4,2 kg
|
| Working width |
2500 mm
|
|
 |
| Large mesh |
G2
|
| Mesh length L |
62,0 mm
|
| Mesh width W |
25,0 mm
|
| Strand width B |
3,0 mm
|
| Strand thickness A |
3,0 mm
|
| FQ approx. |
76,0 %
|
| Weight/mē Steel approx. |
5,6 kg
|
| Working width |
2500 mm
|
|
 |
| Large mesh |
G3
|
| Mesh length L |
62,0 mm
|
| Mesh width W |
30,0 mm
|
| Strand width B |
4,0 mm
|
| Strand thickness A |
3,0 mm
|
| FQ approx. |
73,0 %
|
| Weight/mē Steel approx. |
6,2 kg
|
| Working width |
1250 mm
|
|
 |
| Large mesh |
G4
|
| Mesh length L |
75,0 mm
|
| Mesh width W |
30,0 mm
|
| Strand width B |
3,0 mm
|
| Strand thickness A |
3,0 mm
|
| FQ approx. |
80,0 %
|
| Weight/mē Steel approx. |
4,7 kg
|
| Working width |
1500 mm
|
|
 |
| Large mesh |
G5
|
| Mesh length L |
75,0 mm
|
| Mesh width W |
31,0 mm
|
| Strand width B |
7,0 mm
|
| Strand thickness A |
3,0 mm
|
| FQ approx. |
54,8 %
|
| Weight/mē Steel approx. |
10,6 kg
|
| Working width |
1500 mm
|
|
 |
| Large mesh |
G6
|
| Mesh length L |
88,0 mm
|
| Mesh width W |
38,0 mm
|
| Strand width B |
7,0 mm
|
| Strand thickness A |
3,0 mm
|
| FQ approx. |
63,0 %
|
| Weight/mē Steel approx. |
8,6 kg
|
| Working width |
1500 mm
|
|
 |
| Large mesh |
G7
|
| Mesh length L |
88,0 mm
|
| Mesh width W |
38,0 mm
|
| Strand width B |
7,0 mm
|
| Strand thickness A |
3,0 mm
|
| FQ approx. |
63,0 %
|
| Weight/mē Steel approx. |
8,6 kg
|
| Working width |
1500 mm
|
|
 |
| Large mesh |
G8
|
| Mesh length L |
88,0 mm
|
| Mesh width W |
44,0 mm
|
| Strand width B |
12,0 mm
|
| Strand thickness A |
3,0 mm
|
| FQ approx. |
45,5 %
|
| Weight/mē Steel approx. |
12,8 kg
|
| Working width |
1500 mm
|
|
 |

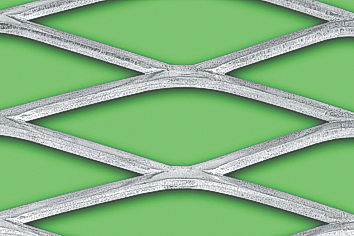

Large mesh |
G9
|
| Mesh length L |
103,0 mm
|
| Mesh width W |
27,0 mm
|
| Strand width B |
5,0 mm
|
| Strand thickness A |
3,0 mm
|
| FQ approx. |
63,0 %
|
| Weight/mē Steel approx. |
8,7 kg
|
| Working width |
2500 mm
|
|
 |

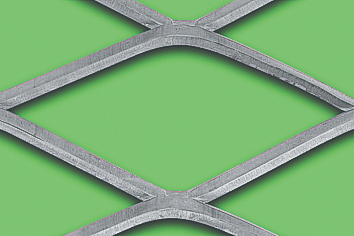

Large mesh |
G10
|
| Mesh length L |
115,0 mm
|
| Mesh width W |
50,0 mm
|
| Strand width B |
7,0 mm
|
| Strand thickness A |
3,0 mm
|
| FQ approx. |
72,0 %
|
| Weight/mē Steel approx. |
6,72 kg
|
| Working width |
2500 mm
|
|
 |

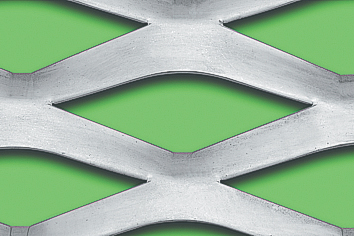

Large mesh |
G11
|
| Mesh length L |
115,0 mm
|
| Mesh width W |
55,0 mm
|
| Strand width B |
18,0 mm
|
| Strand thickness A |
2,0 mm
|
| FQ approx. |
35,0 %
|
| Weight/mē Steel approx. |
ca. 10,4 kg
|
| Working width |
2500 mm
|
|
